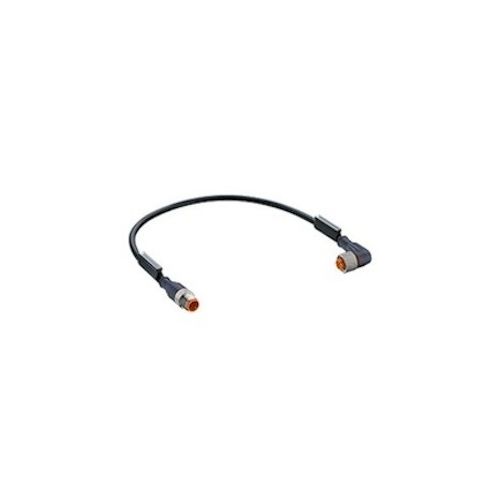

RST 3-RKWT/LED A 4-3-224/25 M | 76875 | Cordset
Actuator/Sensor Cordset, Double ended, M12 male to M12 female 3 pole 25m
| Complete Electronics Part No. | 76875 |
|---|---|
| Manufacturers Part No. | 76875 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 3 |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 25 Metres |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 3-RKWT/LED A 4-3-224/25 M
Actuator/Sensor Cordset, Double ended
- M12 Male connector with Self-locking threaded joint, straight, 3 Pole
- M12 female connector, angled
- Female connector with grommet, LED operation and function indicator (pnp)
- 3 Pole with self locking threaded join
- 25 metres
