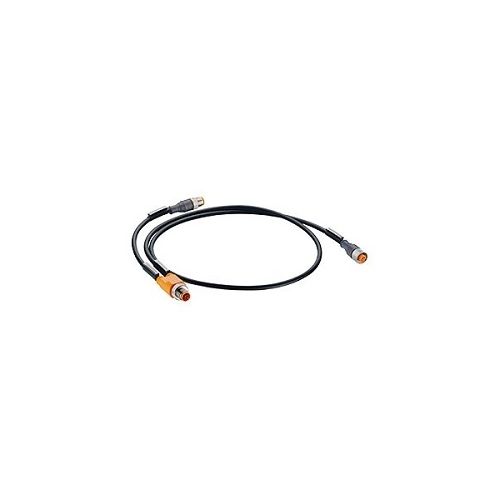

RST 4-602/10 M | 55304 | Cordset
Actuator/Sensor Cordset, M12 Duo male connector with one M12 male connector (0.2 Metre) and one M12 female connector, 5 pole, cable length 10 metres
| Complete Electronics Part No. | 55304 |
|---|---|
| Manufacturers Part No. | 55304 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Duo Male - 2x M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight |
| Number of poles | 5 |
| Rated Voltage: | 60V |
| Rated Current: | 4 A per cable / 4 A max. at 40°C |
| Cable Length: | 10 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 4-602/10 M
Actuator/Sensor Cordset, Double ended
- M12 Duo male connector with one M12 male connector (0.2 Metre) and one M12 female connector
- Self-locking threaded joint
- 5 Pole
- 10 Metre
- PUR jacket
- Halogen free
- Black
