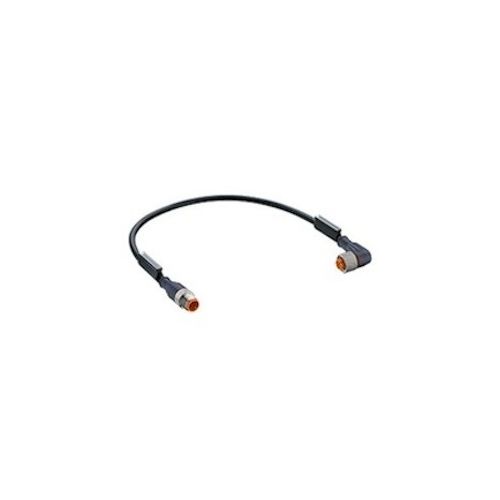

RST 4-RKWT/LED P 4-225/1,5 M | 11869 | Cordset
Actuator/Sensor Cordset, Double ended M12 male to M12 female, 4 pole, cable length 1.5m
| Complete Electronics Part No. | 11869 |
|---|---|
| Manufacturers Part No. | 11869 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 4 |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 1.5 Metres |
| Led Colour: | Yellow/Yellow/Green |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 4-RKWT/LED P 4-225/1.5 M
Actuator/Sensor Cordset, Double ended
- M12 Male connector with Self-locking threaded joint, straight, 4 Pole
- To
- M12 female connector, angled
- Female connector with grommet, LED operation and function indicator, 4 Pole with self locking threaded joint
- PUR Jacket
- 1.5 metre
