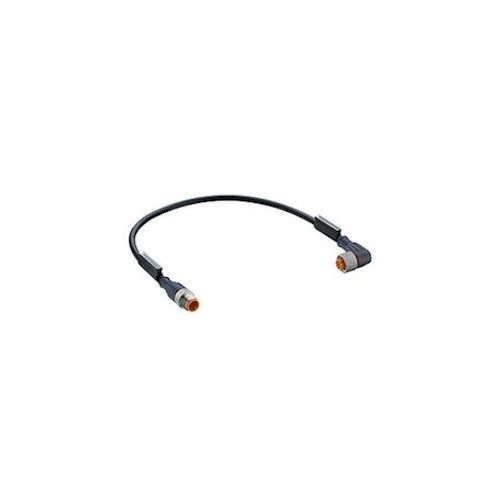

RST 4-RKWT/LED P 4-251/7.5 M | 83264 | Cordset
Cordset, Double ended, M12 Male to M12 Female, 4 pole, 7.5 metres
| Complete Electronics Part No. | 83264 |
|---|---|
| Manufacturers Part No. | 83264 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 4 |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 7.5 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 4-RKWT/LED P 4-251/7.5 M
Cordset, double ended for sensors and actuators
- M12 male connector with self-locking threaded joint, straight, 4 Pole
- M12 female connector, angled
- Female connector with grommet, LED operation and function indicator (pnp), 4 Pole, with self-locking threaded
- 7.5 metres
