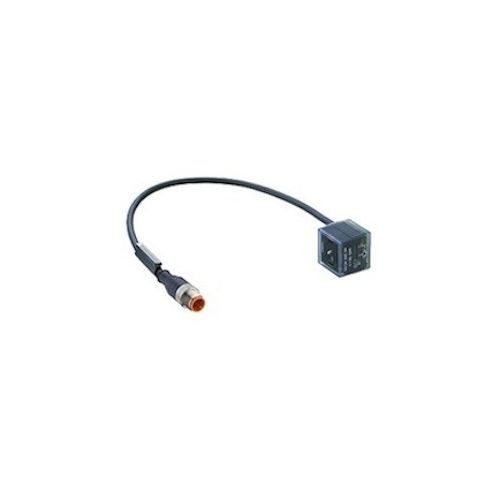

RST 5-3-VAD 1A-1-3-226/3 M | 11916 | Cordset
DIN 43650 - Actuator cordset, double ended (3m), M12 male to valve connector, 3 Pole, With Varistor voltage protection, Yellow LED, Form A
| Complete Electronics Part No. | 11916 |
|---|---|
| Manufacturers Part No. | 11916 |
| Type: | Actuator Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 3 |
| Valve Connector Form | A |
| Rated Current: | 4A at 40°C |
| Voltage: | AC/DC 24 V |
| Insert Type: | Varistor |
| Cable Length: | 3 Metres |
| Led Colour: | Yellow |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 5-3-VAD 1A-1-3-226/3 M
Actuator cordset, double ended
- M12 male connector With self-locking threaded joint
- To
- Valve connector according to DIN EN 175301-803
- Valve connector Form A, 3 Pole, With Varistor voltage protection, Yellow LED
- PUR jacket
- Halogen free
- Black
- 3 Metres
