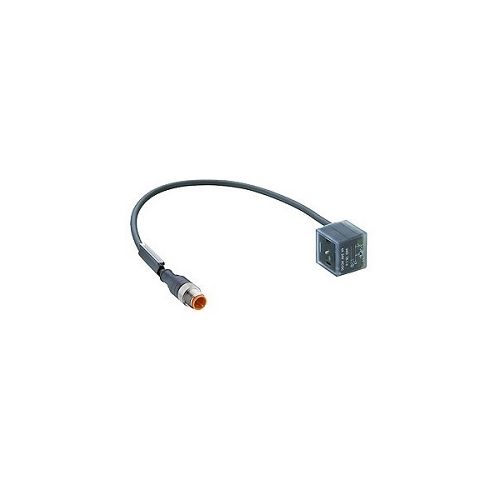

RST 5-3-VAD 1A-1-3-241/0,3 M | 47019 | Cordset
DIN 43650 - 3 Pole actuator cordset (0.3m), M12 male connector with self-locking threaded joint and valve connector, Form A
| Complete Electronics Part No. | 47019 |
|---|---|
| Manufacturers Part No. | 47019 |
| Type: | Actuator Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - Valve Connector |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 3 |
| Valve Connector Form | A |
| Rated Current: | 4A at 40°C |
| Voltage: | AC/DC 24 V |
| Insert Type: | Varistor |
| Cable Length: | 0.3 Metre |
| Led Colour: | Yellow |
| Cable Jacket: | PUR - Welding Spark Resistance |
| IP Rating: | IP67 |
Description
RST 5-3-VAD 1A-1-3-241/0,3 M
Actuator cordset, double-ended
- M12 male connector with self-locking threaded joint
- To
- Valve connector according to DIN EN 175301-803
- Form A
- 3 poles,
- Varistor voltage protection (LED yellow)
- PUR jacket
- Halogen free
- Orange
- 0.3 meters
