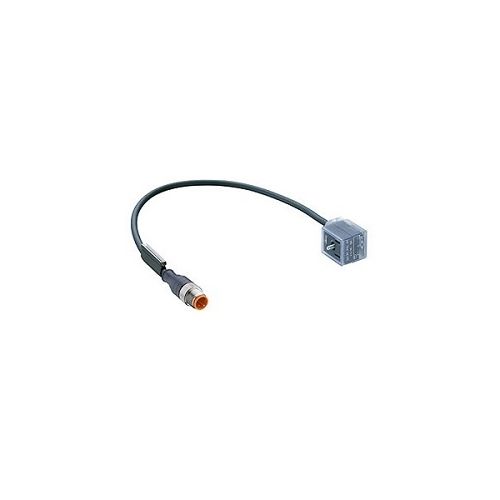

RST 5-3-VB 1A-1-2-226/10 M | 934636167 | Cordset Form B IND
DIN 43650 - Actuator Cordset, M12 male connector with self-locking threaded joint to Valve connector (10m), Cable exit 180
| Complete Electronics Part No. | 934 636-167 |
|---|---|
| Manufacturers Part No. | 934636167 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - Valve Connector |
| Coded Option (Circular) | A |
| Cable Entry: | Straight |
| Number of poles | 3 |
| Valve Connector Form | B |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 10 Metres |
| Led Colour: | Yellow |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 5-3-VB 1A-1-2-226/10 M
Actuator cordset
- Double ended M12 male connector with self-locking threaded joint
- Valve connector similar to DIN EN 175301-803, I
- Industry standard
- Form B,
- 3 Pole
- Cable exit 180°
- Varistor voltage protection (LED yellow)
- PUR jacket, Halogen free
- Black
- Environmental temperature -25 ºC ... +80 ºC
