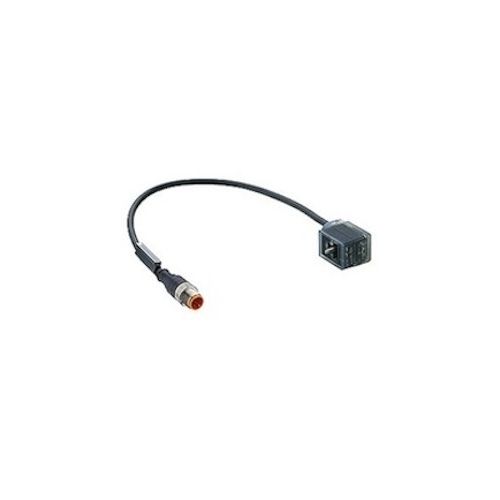

RST 5-3-VBD 1A-1-1-226/0,3 M | 11965 | Cordset Form B DIN

DIN 43650 - Actuator cordset, double ended (0.3m), M12 male connector with self-locking threaded joint to valve connector, 3 Pole, With Varistor voltage protection, Yellow LED, cable exit 0°
More Information
Complete Electronics Part No. 11965
Manufacturers Part No. 11965
Type: Actuator Cordset
Cordset Type: Double Ended
Cordset Gender M12: M12 Male - Valve Connector
Coded Option (Circular) A
Cable Entry: Straight - Right Angled
Number of poles 3
Valve Connector Form B
Rated Voltage: 32V
Rated Current: 4A at 40°C
Cable Length: 0.3 Metre
Led Colour: Yellow
Cable Jacket: PUR
IP Rating: IP67
Description

RST 5-3-VBD 1A-1-1-226/0.3 M

Sensor Cordset,



  • Double ended M12 male connector with Self-locking threaded joint to  Connector for pressure switches according to DIN EN 175301-803,
  • Form B,
  • 3 Poles,
  • Varistor voltage protection,
  • Yellow LED
  • Cable exit 0°
  • Length 0.3 metres
  • PUR Jacket
  • Halogen free
  • Black
