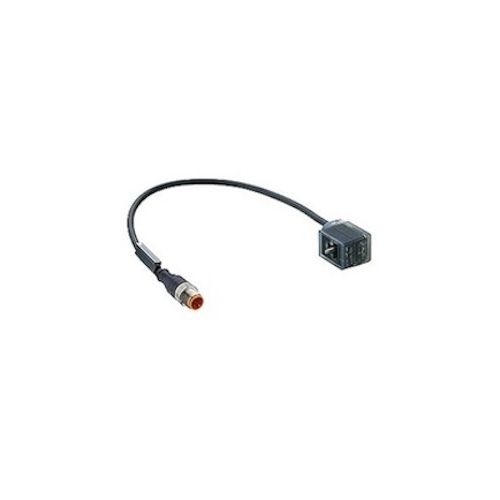

RST 5-3-VBD 1A-1-1-226/1,5 M | 11968 | Cordset Form B DIN

DIN 43650 - Actuator cordset, double ended (1.5m), M12 male connector with self-locking threaded joint to valve connector, 3 Pole, With Varistor voltage protection, Yellow LED, cable exit 0°
More Information
Complete Electronics Part No 11968
Manufacturers Part No. 11968
Type Actuator Cordset
Cordset Type Double Ended
Cordset Gender M12 M12 Male - Valve Connector
Coded Option (Circular) A
Cable Entry Straight - Right Angled
Number of poles 3
Valve Connector Form B
Rated Voltage 32V
Rated Current 4A at 40°C
Cable Length 1.5 Metres
Led Colour Yellow
Cable Jacket PUR
IP Rating IP67
Description

RST 5-3-VBD 1A-1-1-226/1.5 M

Sensor Cordset,



  • Double ended M12 male connector with Self-locking threaded joint to  Connector for pressure switches according to DIN EN 175301-803,
  • Form B,
  • 3 Poles,
  • Varistor voltage protection,
  • Yellow LED
  • Cable exit 0°
  • Length 1.5 metres
  • PUR Jacket
  • Halogen free
  • Black
