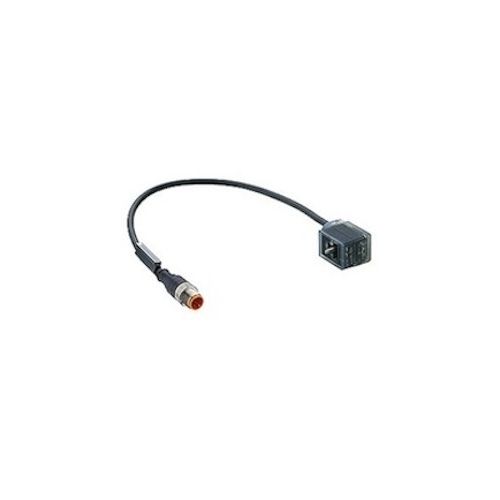

RST 5-3-VBD 1A-1-1-226/1 M | 11967 | Cordset Form B DIN
DIN 43650 - Actuator cordset, double ended (1m), M12 male connector with self-locking threaded joint to valve connector, 3 Pole, With Varistor voltage protection, Yellow LED, cable exit 0°
| Complete Electronics Part No. | 11967 |
|---|---|
| Manufacturers Part No. | 11967 |
| Type: | Actuator Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - Valve Connector |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 3 |
| Valve Connector Form | A |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 1 Metre |
| Led Colour: | Yellow |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 5-3-VBD 1A-1-1-226/1 M
Sensor Cordset,
- Double ended M12 male connector with Self-locking threaded joint to Connector for pressure switches according to DIN EN 175301-803,
- Form B,
- 3 Poles,
- Varistor voltage protection,
- Yellow LED
- Cable exit 0°
- Length 1 metres
- PUR Jacket
- Halogen free
- Black
