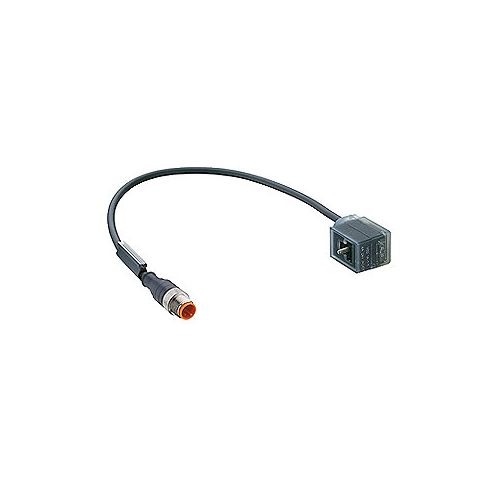

RST 5-3-VBD 1A-1-2-226/3 M | 45294 | Cordset Form B DIN
Actuator cordset, double ended (3m), M12 male connector to DIN 43650 - Valve connector , 3 Pole, Cable exit 180°
| Complete Electronics Part No. | 45294 |
|---|---|
| Manufacturers Part No. | 45294 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - Valve Connector |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 3 |
| Valve Connector Form | B |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 3 Metres |
| Led Colour: | Yellow |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 5-3-VBD 1A-1-2-226/3 M
Actuator cordset, double ended
- M12 male connector with self-locking threaded joint
- To
- DIN 43650 -Valve connector
- 3 Pole,
- Cable exit 180°,
- Varistor voltage protection (LED yellow),
- Form B
-
PUR jacket
- Length 3 metres
