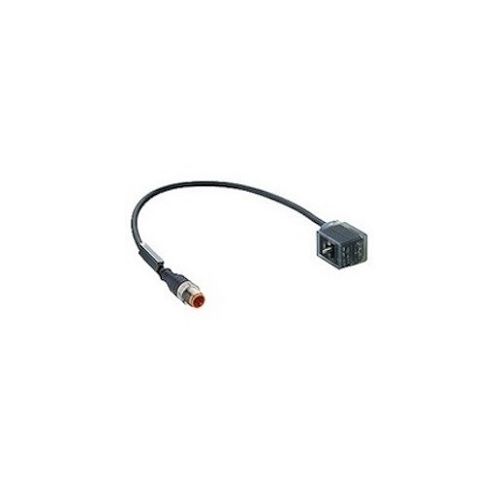

RST 5-3-VBD 1A-1-2-241/5 M | 46911 | Cordset Form B DIN
DIN 43650 - Actuator Cordset, M12 male connector with self-locking threaded joint to valve connector (5m), cable exit 180°,
| Complete Electronics Part No. | 46911 |
|---|---|
| Manufacturers Part No. | 46911 |
| Type: | Actuator Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - Valve Connector |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 3 |
| Valve Connector Form | B |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Voltage: | AC/DC 24 V |
| Cable Length: | 5 Metres |
| Led Colour: | Yellow |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 5-3-VBD 1A-1-2-241/5 M
Actuator cordset, double ended M12 Male to 3 Pole Valve connector
- M12 male connector with self-locking threaded joint to Valve connector according to DIN EN 175301-803,
- Form B,
- 3 Pole,
- Cable exit 180°,
- Varistor voltage protection (LED yellow)
- PUR jacket,
- Halogen free
- Orange
- 5 Metre
