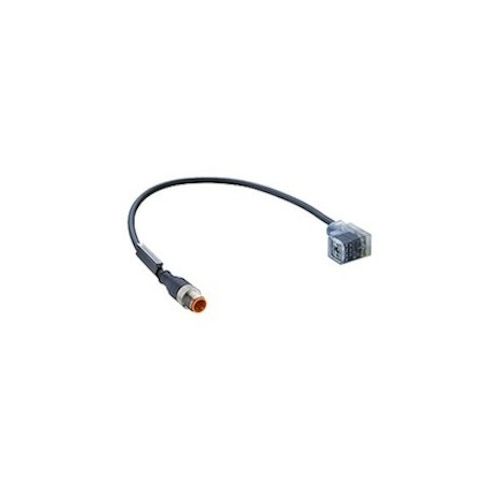

RST 5-3-VC 1A-1-3-226/0,3 M | 16997 | Cordset Form C IND

DIN 43650 - Actuator cordset, double ended (0.3m), M12 male to Valve connector , 3 Pole, Varistor voltage protection (LED yellow), Form C (9.4 mm)
More Information
Complete Electronics Part No. 16997
Manufacturers Part No. 16997
Type: Actuator Cordset
Cordset Type: Double Ended
Cordset Gender M12: M12 Male - Valve Connector
Coded Option (Circular) A
Cable Entry: Straight - Right Angled
Number of poles 3
Valve Connector Form C
Rated Voltage: 32V
Rated Current: 4A at 40°C
Cable Length: 0.3 Metre
Led Colour: Yellow
Cable Jacket: PUR
IP Rating: IP67
Description

RST 5-3-VC 1A-1-3-226/0,3 M

Actuator cordset, double ended

  • M12 male connector with self-locking threaded joint
  • To
  • Valve connector according to DIN EN 175301-803
  • Industry standard Form C (9.4 mm)
  • 3 Pole, Varistor voltage protection (LED yellow)
  • PUR jacket
  • Halogen free
  • Black
  • Cable Length 0.3 metres
