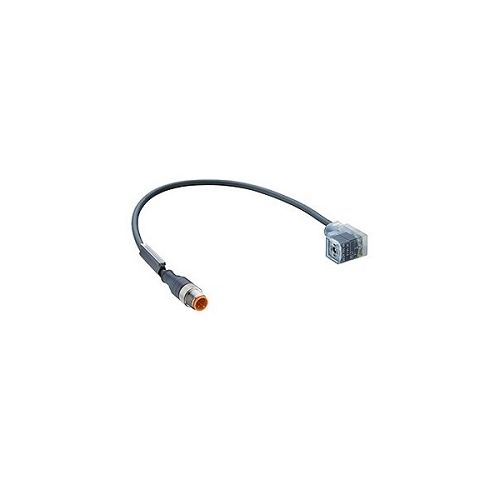

RST 5-3-VC 1A-1-3-226/2 M | 43834 | Cordset Form C IND
DIN 43650 - Actuator cordset, double ended (2m), M12 male to Valve connector , 3 Pole, Varistor voltage protection (LED yellow), Form C
| Complete Electronics Part No. | 43834 |
|---|---|
| Manufacturers Part No. | 43834 |
| Type: | Actuator Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - Valve Connector |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 3 |
| Valve Connector Form | C |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 2 Metres |
| Led Colour: | Yellow |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 5-3-VC 1A-1-3-226/2 M
Actuator cordset
- Double ended
- M12 male connector with self-locking threaded joint
- To
- Valve connector according to DIN EN 175301-803
- Industry standard Form C (9.4 mm)
- 3 Pole,
- Varistor voltage protection
- (LED yellow)
- PUR jacket,
- Halogen free
- Black
- 2 Metres
