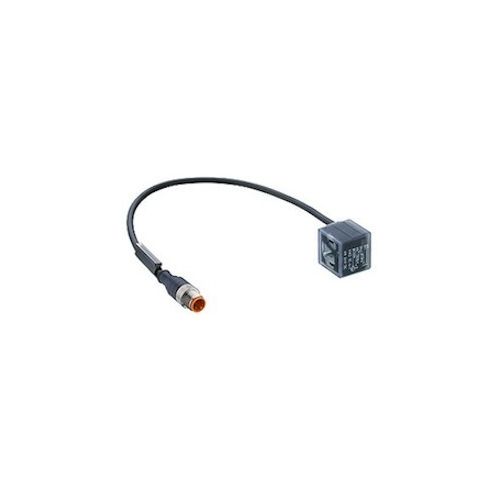

RST 5-VAD 3C-4-1-228/10 M | 25959 | Cordset
DIN 43650 - Sensor cordset, double ended (10m), M12 male to pressure switch connector , 5 Pole, Yellow LED and green function indicator, Form A
| Complete Electronics Part No. | 25959 |
|---|---|
| Manufacturers Part No. | 25959 |
| Type: | Actuator Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - Valve Connector |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 5 |
| Valve Connector Form | A |
| Rated Current: | 4A at 40°C |
| Voltage: | AC/DC 24 V |
| Cable Length: | 10 Metres |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 5-VAD 3C-4-1-228/10 M
Sensor Cordset, Double ended
- M12 male connector with Self-locking threaded joint
- To
- Connector for pressure switches according to DIN EN 175301-803, Form A, 5 Poles, Yellow LED and green function indicator
- PUR Jacket
- Halogen free
- Black
- 10 Metre
