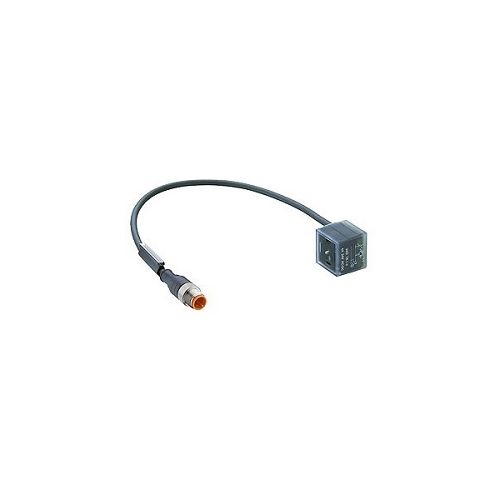

RST 5-VAD 3C-4-1-259/0,3 M | 46915 | Cordset
DIN 43650 - Sensor cordset, double-ended (0.3m), M12 to connector for pressure switches, 5 poles, LED yellow and function indicator green, Form A
| Complete Electronics Part No. | 46915 |
|---|---|
| Manufacturers Part No. | 46915 |
| Type: | Sensor Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - Valve Connector |
| Coded Option (Circular) | A |
| Number of poles | 5 |
| Valve Connector Form | A |
| Rated Current: | 4A at 40°C |
| Voltage: | AC/DC 24 V |
| Cable Length: | 0.3 Metre |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PUR - Welding Spark Resistance |
| IP Rating: | IP67 |
Description
RST 5-VAD 3C-4-1-259/0,3 M
Sensor cordset, double ended
- M12 male connector with self-locking threaded joint
- To
- Connector for pressure switches according to DIN EN 175301-803, Form A, 5 Pole, LED yellow and function indicator green
- PUR jacket
- Halogen free
- Orange
- 0.3 Metre
