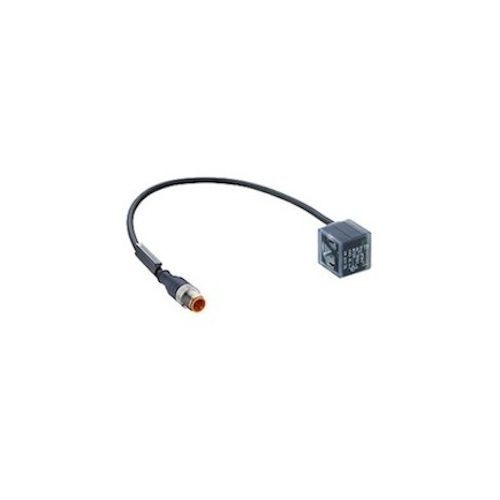

RST 5-VAD 3C-4-2-228/0,6 M | 12074 | Cordset
DIN 43650 - Sensor cordset, double ended (0.6m), M12 male connector with self-locking threaded joint to pressure switch connector , 5 Pole, Yellow LED and green function indicator, Cable exit 180°
| Complete Electronics Part No. | 12074 |
|---|---|
| Manufacturers Part No. | 12074 |
| Type: | Actuator Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - Valve Connector |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 5 |
| Valve Connector Form | A |
| Rated Current: | 4A at 40°C |
| Voltage: | AC/DC 24 V |
| Cable Length: | 0.6 Metre |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 5-VAD 3C-4-2-228/0.6 M
Sensor Cordset,
- Double ended M12 male connector with Self-locking threaded joint to Connector for pressure switches according to DIN EN 175301-803,
- Form A,
- 5 Poles,
- Yellow LED and green function indicator,
- Cable exit 180°
- Length 0.6 metres
- PUR Jacket
- Halogen free
- Black
