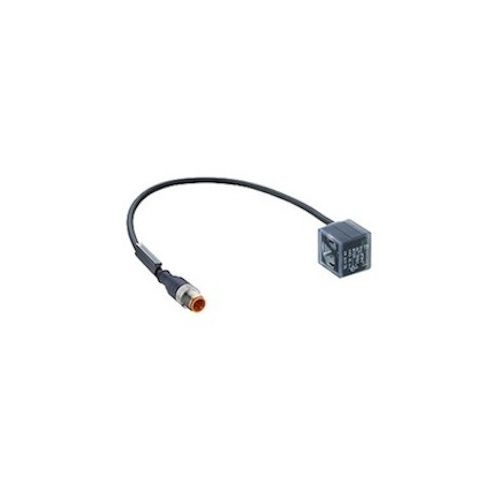

RST 5-VAD 3C-4-2-228/2 M | 12077 | Cordset
DIN 43650 - Sensor cordset, double ended (2m), M12 male connector with self-locking threaded joint to Valve connector , 5 Pole, Yellow LED and green function indicator, Cable exit 180°
| Complete Electronics Part No. | 12077 |
|---|---|
| Manufacturers Part No. | 12077 |
| Type: | Actuator Cordset |
| Voltage: | AC/DC 24 V |
| Number of poles | 5 |
| Valve Connector Form | A |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 5-VAD 3C-4-2-228/2 M
Sensor Cordset,
- Double ended M12 male connector with Self-locking threaded jointto Connector for pressure switches according to DIN EN 175301-803,
- Form A,
- 5 Poles,
- Yellow LED and green function indicator,
- Cable exit 180°
- Length 2 metres
- PUR Jacket
- Halogen free
- Black
