RST 8-RKT 8-6-268/2 M | 46920 | Cordset

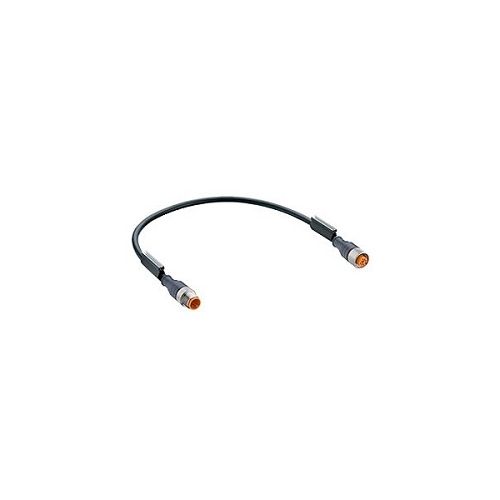

Cordset, double ended, for sensors and actuators M12 Male to M12 Female 2 metres
| Complete Electronics Part No. | 46920 |
|---|---|
| Manufacturers Part No. | 46920 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight |
| Number of poles | 8 |
| Rated Voltage: | 36V |
| Rated Current: | 2 A at 40°C |
| Cable Length: | 2 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 8-RKT 8-6-268/2 M
Cordset, double ended, for sensors and actuators M12 Male to M12 Female
- M12 male connector with self-locking threaded joint, straight, 8-poles,
- To
- M12 female connector, straight, 6-poles, with self-locking threaded joint,
- Female connector with grommet, to connect at pluggable miniature sensor distribution box type SBS,
- 6-poles, with self-locking threaded joint,
- PUR jacket,
- Halogen free,
- Orange
- Length 2 metres
