RST 8-RKT 8-6-337/3 M | 423 | Cordset

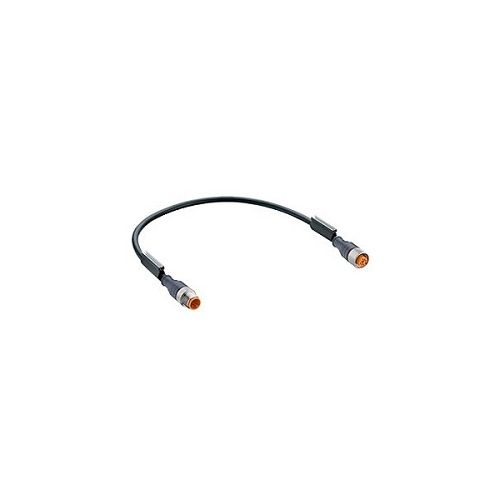

M12 Male to M12 Female, 6 pole, 3m, double ended Cordset for sensors and actuators - 3M
| Complete Electronics Part No. | 423 |
|---|---|
| Manufacturers Part No. | 423 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight |
| Number of poles | 8 |
| Rated Voltage: | 36V |
| Rated Current: | 2 A at 40°C |
| Cable Length: | 3 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 8-RKT 8-6-337/3 M
M12 Cordset, double ended, for sensors and actuators
- M12 male connector with self-locking threaded joint, straight, 8-poles
- M12 female connector with grommet, to connect at pluggable miniature sensor distribution box type SBS
- 6-poles
- With self-locking threaded joint
- PUR jacket, halogen free, black
- 3 metres
