RST 8-RKWT 8-6-268/10 M | 46513 | Cordset
Cordset, Double ended
| Complete Electronics Part No. | 46513 |
|---|---|
| Manufacturers Part No. | 46513 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 8 |
| Rated Voltage: | 36V |
| Rated Current: | 2 A at 40°C |
| Cable Length: | 10 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description

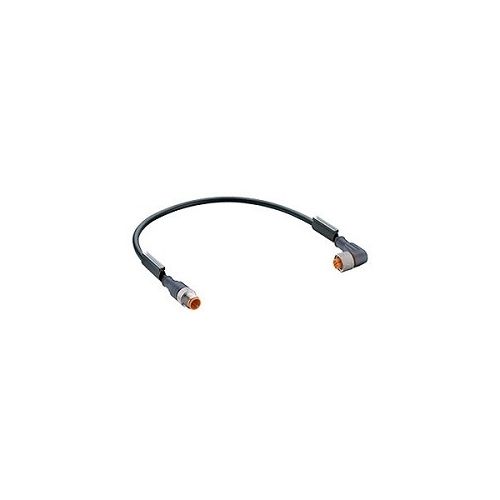

RST 8-RKWT 8-6-268/10 M
Cordset, double ended for sensors and actuators
- M12 male connector with self-locking threaded joint, straight, 8 Pole
- M12 female connector, angled, 6 Pole
- Female connector with grommet to connect pluggable miniature sensor distribution box type SBS
