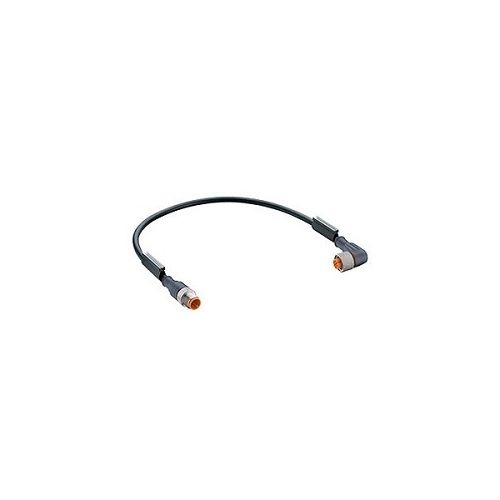

RST 8-RKWT 8-6-337/10 M | 64558 | Cordset
M12 Cordset, double ended, for sensors and actuators, M12 male to M12 female
| Complete Electronics Part No. | 64558 |
|---|---|
| Manufacturers Part No. | 64558 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 8 |
| Rated Voltage: | 36V |
| Rated Current: | 2 A at 40°C |
| Cable Length: | 10 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
RST 8-RKWT 8-6-337/10 M
Cordset, double ended, for sensors and actuators
- M12 male connector with self-locking threaded joint, Straight, 8 poles (Contact assignment 8 poles, Pin 6 and 8 n.c.),
- M12 female connector, with self-locking threaded joint, Right angled, 8 poles (Contact assignment 8 poles, Pin 6 and 8 n.c.)
- To connect a pluggable miniature sensor distribution box type SBS
- PUR jacket, halogen free, black, 10 metres
- IP67
