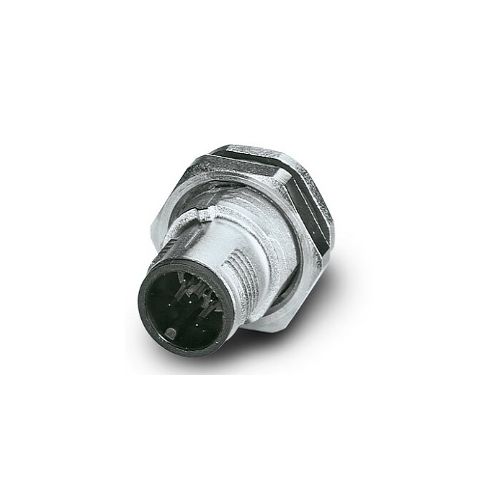

SACC-DSI-MS-5CON-L180/12 SCO | 1552311 | M12 Speedcon
Sensor/actuator flush-type connector, 5-pos., M12-SPEEDCON, Acoded, rear/screw mounting with Pg9 thread,
| Complete Electronics Part No. | 1552311 |
|---|---|
| Manufacturers Part No. | 1552311 |
Description
SACC-CI-M12MS-5P SMD T
Flush-type connector, 5-pos., M12
- Nominal Voltage: 60V
- Nominal Current: 4 Amps
- A coded
- Gender: Male
- IP67 (correctly plugged in and locked)
- Mounting: Panel
- Rear Mounting with PG9 thread
- With 12 mm long solder pins
- Flammability rating according to UL 94: V0
- Contact Material: CuZn
- Operating Temperature: -25ºC to +85ºC
- Weight: 0.01454 KG
- Part Number: 1552311
- Country of Origin: Germany
