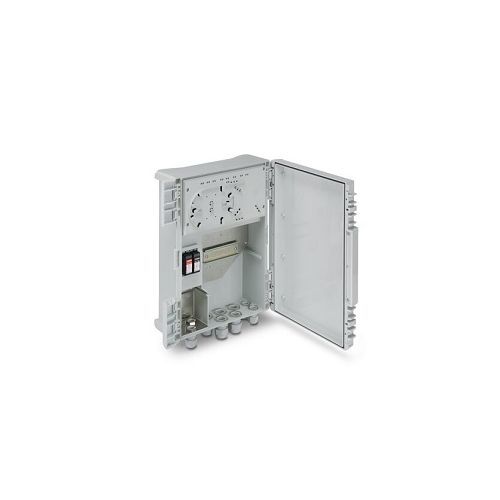

SCX 2POE 2LX | 1108543 | Industrial Ethernet Switch
Smart Camera Box to connect PoE end devices, two PoE ports, two uplink ports (SFP slots), Managed Switch, integrated surge protection
| Complete Electronics Part No. | 1108543 |
|---|---|
| Manufacturers Part No. | 1108543 |
Description
Ethernet Switch SCX 2POE 2LX
- The Smart Camera Box is used to connect PoE end devices such as IP cameras to a video server
- Psh in spring connection
- Supply voltage range: 100 V AC ... 240 V AC -15 % ... +10 % (Single-phase)
- Ethernet TX Speed: 110/100/1000
- Connection: 2 x RJ45 Jack
- Max output power: 165 W (>55°C derating)
- Fast Ethernet TX speed: 100/1000 Mbps (depending on the SFP module used)
- Connection Method: 2 x SFP Ports
- Configuration interface: 1 x RJ45
- Push in spring connection
- Width 284mm
- Height: 364mm
- Depth: 121mm
- Colour: Light Grey
- Housing Material: Polycarbonate PC (Housing)
- Impact Strength: IK10 (in accordance with IEC 62262: Impact energy of 20 J, corresponds to 5 kg from a height of 40 cm)
- Wall / Mast mounting
- Ingress Protection: IP65
- UV-resistant in accordance with UL746C
- splice tray
- Weight Per piece (not including packing): 4300 g
- Part Number: 1108543
- Customs tariff number: 85176200
- Country of origin: DE
