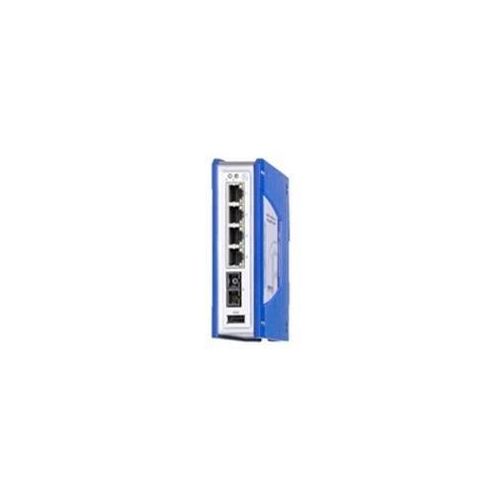

SPIDER-PL-20-04T1M29999TX9HHHH | 942141124 | Hirschmann
Unmanaged, Industrial ETHERNET Rail Switch,4 x 10/100 Mbit/s Ethernet, 1x 100 BASE-FX, TP & MM cable
| Complete Electronics Part No. | 942141124 |
|---|---|
| Manufacturers Part No. | 942 141-124 |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 1 |
| Total Ethernet Ports: | 5 |
| TX (Copper) Port Connector Type: | RJ45 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| SFP / XFP Base: | 100 Base FX |
| Operating Voltage: | DC 9.6V - 32V |
| Mounting: | DIN Rail |
| IP Rating: | IP40 |
Description
SPIDER-PL-20-04T1M29999TX9HHHH
Unmanaged, Industrial ETHERNET Rail Switch
- 4 x 10/100/ Mbit/s TP cable, RJ45 sockets
- 1 x 100 Base FX, MM, SC Sockets
- Auto-crossing
- Auto-negotiation
- Auto-polarity
- Operating voltage: 12/24 V DC (9.6 - 32 V DC)
- Current consumption at 24 V DC Max. 180 mA
- Mounting: DIN Rail
- Protection class: IP40
***This product is being discontinued***
Last Order Date September 30th 2023
Additional RJ45 ports & 1 additional fiber multimode port SC
Accessories:
- Rail Power Supply RPS 30/80 EEC/120 EEC (CC),
- Wall mounting plate for DIN rail mounting 40mm - order nr. 942 177-001
- Wall mounting plate for DIN rail mounting 70mm - order nr. 942 177-002
