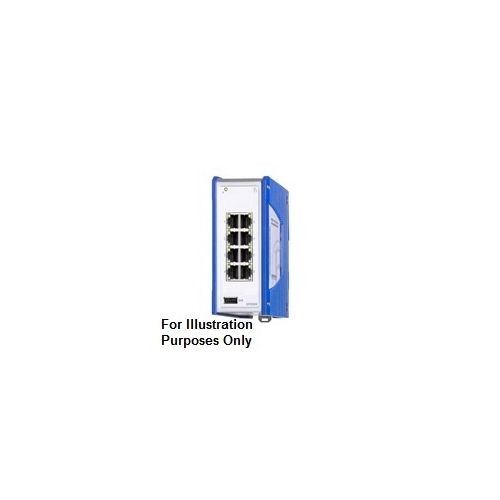

SPIDER-PL-20-04T1M49999TWVHHHH | Spider III
Spider III Unmanaged Industrial Ethernet Switch, 4x 10/100BASE-TX, TP cable, RJ45 sockets,1 x 100BASE-FX, MM cable, ST sockets
| Complete Electronics Part No. | SPIDER-PL-20-04T1M49999TWVHHHH |
|---|---|
| Manufacturers Part No. | SPIDER-PL-20-04T1M49999TWVHHHH |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 1 |
| Total Ethernet Ports: | 5 |
| FX (Optical) Connector Type: | ST |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | DC 9.6V - 32V |
| Mounting: | DIN Rail / Wall |
| IP Rating: | IP40 |
Description
SPIDER-PL-20-04T1M29999TWVHHHH
Unmanaged Industrial Ethernet Switch
- 4x 10/100BASE-TX, TP cable, RJ45 sockets,
- 1 x 100BASE-FX,, MM, ST Sockets
- auto-crossing,
- auto-negotiation,
- auto-polarity,
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- USB interface: 1 x USB for configuration
- Operating voltage: 12/24 V DC (9.6 - 32 V DC)
- Current consumption at 24 V DC Max. 180 mA
- Operating temperature -40 ºC ... 70 ºC
- Mounting: DIN Rail
- Protection class IP40 (metal housing)
- Optional wall mounting plate (40mm): 942 177-001
- Optional wall mounting plate (70mm): 942 177-002
- Power Supply RPS 30/80 EEC/120 EEC (CC),
***Product being Discontinued***
Last Order Date September 30th 2023
