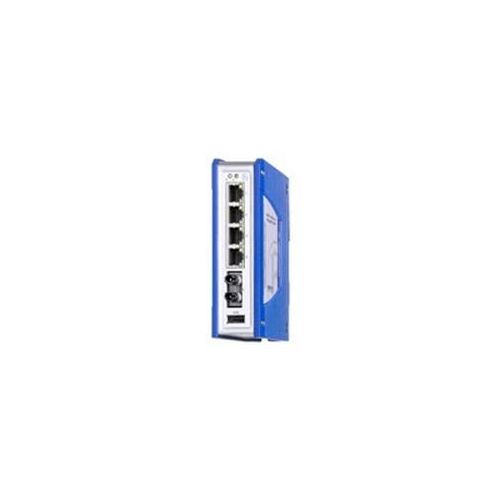

SPIDER-PL-20-04T1M49999TZ9HHHH | 942141025 | Industrial Ethernet
Unmanaged, Industrial ETHERNET Rail Switch, 10/100 Mbit/s Ethernet, 4x 10/100BASE-TX, TP cable, 1 x 100BASE-FX, MM cable, ST sockets
| Complete Electronics Part No. | 942141025 |
|---|---|
| Manufacturers Part No. | 942 141-025 |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 1 |
| Total Ethernet Ports: | 5 |
| TX (Copper) Port Connector Type: | RJ45 |
| FX (Optical) Connector Type: | ST |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | DC 9.6V - 32V |
| Mounting: | DIN Rail |
| IP Rating: | IP40 |
Description
SPIDER-PL-20-04T1M49999TZ9HHHH
Unmanaged, Industrial ETHERNET Rail Switch
- 10/100 Mbit/s Ethernet
- 4x 10/100BASE-TX
- TP cable, RJ45 sockets
- 1 x 100BASE-FX
- MM cable
- ST sockets
- Auto-crossing
- Auto-negotiation
- Auto-polarity
- Operating voltage: 12/24 V DC (9.6 - 32 V DC)
- Mounting: DIN Rail
- Protection class: IP40
***This product is being discontinued***
Last Order Date September 30th 2023
Suggested Alternative: 942335030, SPR20-7TX/2FM-EEC
3 additional RJ45 ports & 2 additional fiber multimode port SC but missing 1 multimode ST port
- Accessories: Rail Power Supply RPS 30/80 EEC/120 EEC (CC)
- Wall mounting plate for DIN rail mounting (width 40/70 mm)
