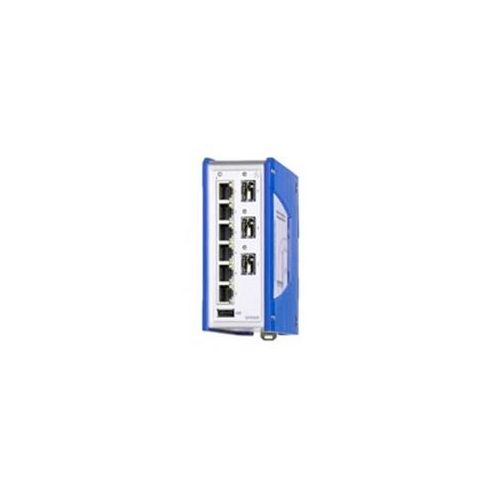

SPIDER-PL-20-06T1Z6Z6Z6TZ9HHHH | 942141027
Unmanaged, Industrial ETHERNET Rail Switch, 10/100 Mbit/s Ethernet, 6x 10/100BASE-TX, TP cable, 3 x 100MBit/s SFP
| Complete Electronics Part No. | 942141027 |
|---|---|
| Manufacturers Part No. | 942 141 027 |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 3 |
| Total Ethernet Ports: | 6 |
| TX (Copper) Port Connector Type: | RJ45 |
| FX (Optical) Connector Type: | SFP |
| FX (Optical) Cable Type: | Multimode or Single Mode |
| Operating Voltage: | DC 9.6V - 32V |
| Mounting: | DIN Rail |
| IP Rating: | IP40 |
Description
SPIDER-PL-20-06T1Z6Z6Z6TZ9HHHH
Unmanaged, Industrial ETHERNET Rail Switch
- 6x 10/100BASE-TX TP cable, RJ45 sockets
- 3 x 100MBit/s SFP
- Auto-crossing
- Auto-negotiation
- Auto-polarity
- Operating voltage: 12/24 V DC (9.6 - 32 V DC)
- Mounting: DIN Rail
- Protection class: IP40
***This product is being discontinued***
Last Order Date September 30th 2023
Suggested Alternative: 942335017, SPR20-8TX-EEC,
2 additional RJ45 ports but missing SFP slots
OR
942335030, SPR20-7TX/2FM-EEC
1 additional RJ45 port & 2 additional fiber multimode ports SC but missing SFP slots
OR
942335031, SPR20-7TX/2FS-EEC
1 additional RJ45 port & 2 additional fiber singemode ports SC but missing SFP slots
- Accessories: Rail Power Supply RPS 30/80 EEC/120 EEC (CC)
- Wall mounting plate for DIN rail mounting (width 40/70 mm)
