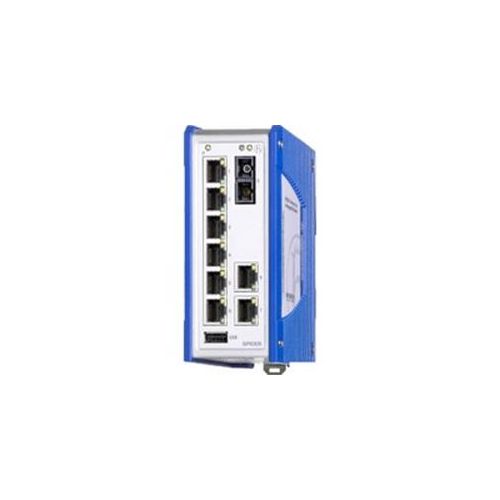

SPIDER-PL-20-08T1M29999TZ9HHHH | 942141028 | Industrial Ethernet
Unmanaged, Industrial ETHERNET Rail Switch, 10/100 Mbit/s Ethernet, 8x 10/100BASE-TX, TP cable, 1 x 100BASE-FX, MM cable, SC sockets
| Complete Electronics Part No. | 942141028 |
|---|---|
| Manufacturers Part No. | 942141028 |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100 (RJ45) Ports: | 8 |
| Total 100 Base Ports: | 1 |
| Total Ethernet Ports: | 9 |
| TX (Copper) Port Connector Type: | RJ45 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | DC 9.6V - 32V |
| Mounting: | DIN Rail |
| IP Rating: | IP40 |
Description
SPIDER-PL-20-08T1M29999TZ9HHHH
Unmanaged, Industrial ETHERNET Rail Switch
- 8x 10/100BASE-TX, TP cable, RJ45 sockets
- 1 x 100BASE-FX, MM cable, SC sockets
- Auto-crossing
- Auto-negotiation
- Auto-polarity
- Operating voltage: 12/24 V DC (9.6 - 32 V DC)
- Mounting: DIN Rail
- Protection class: IP40
- Part Number: 942141028
***This product is being discontinued***
Last Order Date September 30th 2023
Suggested Alternative: 942335028, SPR20-8TX/1FM-EEC, 1-to-1 replacement
- Accessories: Rail Power Supply RPS 30/80 EEC/120 EEC (CC)
- Wall mounting plate for DIN rail mounting (width 40/70 mm)
