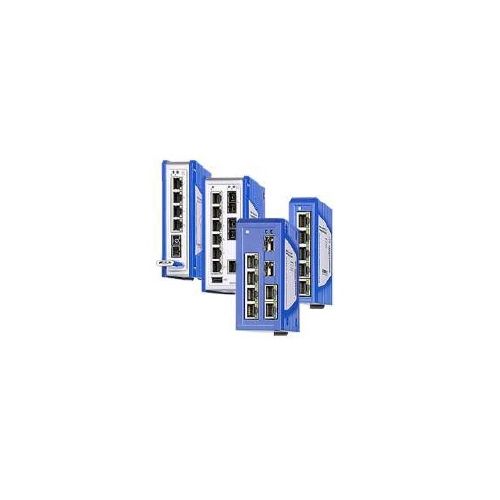

SPIDER-PL-30 | 942141035 | Industrial Ethernet
Unmanaged, Industrial ETHERNET Rail Switch, 24 x 10/100BASE-TX, TP cable, RJ45, 2 x 100/1000MBit/s SFP
| Complete Electronics Part No. | 942141035 |
|---|---|
| Manufacturers Part No. | 942141035 |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100 (RJ45) Ports: | 24 |
| Total 100/1000 (FX) Ports: | 2 |
| Total Ethernet Ports: | 26 |
| TX (Copper) Port Connector Type: | RJ45 |
| Operating Voltage: | DC 9.6V - 32V |
| Mounting: | DIN Rail |
| IP Rating: | IP40 |
Description
SPIDER-PL-30-24T1O6O699TZ9HHHV
Unmanaged, Industrial ETHERNET Rail Switch
24 x 10/100BASE-TX TP cable, RJ45 sockets
2 x 100/1000MBit/s SFP
Auto-crossing
Auto-negotiation
Auto-polarity
Diagnostic functions LEDs (power, link status, data, data rate)
1 x USB for configuration
Operating voltage: 12/24/48 V DC (9.6 - 32 V DC), 24 V AC, redundant
Operating temperature -40-+70 °C
Mounting: DIN Rail
Protection class: IP40 metal housing
Accessories:
Rail Power Supply RPS 30/80 EEC/120 EEC (CC)
Wall mounting plate for DIN rail mounting (width 40/70 mm)
