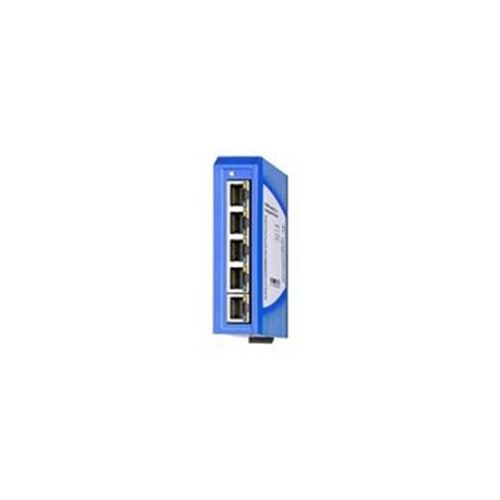

SPIDER-PL-40-05T1999999TX9HHHH | 942141119 | Hirschmann
Unmanaged, Industrial ETHERNET Rail Switch, 10/100/1000 Mbit/s Ethernet, 5 x 10/100/1000 BASE-TX, TP cable
| Complete Electronics Part No. | 942141119 |
|---|---|
| Manufacturers Part No. | 942141119 |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100/1000 (RJ45) Ports: | 5 |
| Total Ethernet Ports: | 5 |
| TX (Copper) Port Connector Type: | RJ45 |
| Operating Voltage: | DC 9.6V - 32V |
| Mounting: | DIN Rail |
| IP Rating: | IP40 |
Description
SPIDER-PL-40-05T1999999TX9HHHH
Unmanaged, Industrial ETHERNET Rail Switch
- 5 x 10/100/1000 Mbit/s Ethernet, TP cable, RJ45 sockets
- 1 x USB for configuration
- Auto-crossing
- Auto-negotiation
- Auto-polarity
- Operating voltage: 12/24 V DC (9.6 - 32 V DC)
- Current consumption at 24 V DC Max. 180 mA
- Mounting: DIN Rail
- Protection class: IP40
***This product is being discontinued***
Last Order Date September 30th 2023
Suggested Alternative: 942335020, SPR40-8TX-EEC, 3 additional RJ45 ports
-
Accessories: Rail Power Supply RPS 30/80 EEC/120 EEC (CC), Wall mounting plate for DIN rail mounting 40mm - order nr. 942 177-001,wall mounting plate for DIN rail mounting 70mm - order nr. 942 177-002
