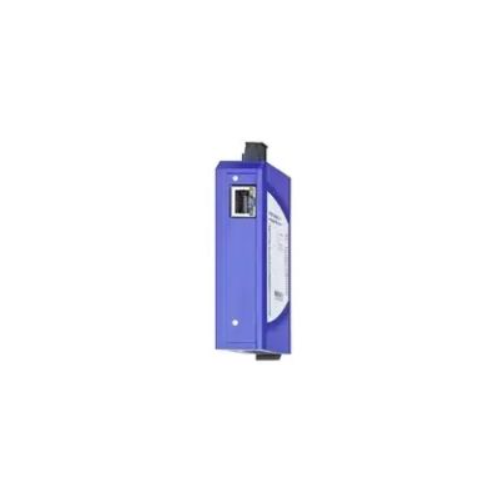

942132005 | SPIDER-SL-20-01T1M29999SY9HHHH | Ethernet
Unmanaged, Industrial ETHERNET Rail Switch, 1 x 10/100 Base-TX, TP cable, RJ45 Socket + 1 x 100 Base-FX, MM Cable, SC Socket
| Complete Electronics Part No. | 942132005 |
|---|---|
| Manufacturers Part No. | 942132005 |
| Ethernet Product Type: | Unmanaged Switch |
| Total 10/100 (RJ45) Ports: | 1 |
| Total 100 Base Ports: | 1 |
| Total Ethernet Ports: | 2 |
| TX (Copper) Port Connector Type: | RJ45 |
| Operating Voltage: | DC 9.6V - 32V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
SPIDER-SL-20-01T1M29999SY9HHHH
Unmanaged, Industrial ETHERNET Rail Switch
- SPIDER Standard Line, 10/100 Mbit/s Ethernet
- 1 x 10/100BASE-TX, TP cable, RJ45 sockets
- Auto-crossing, auto-negotiation, auto-polarity
- 1 x 100BASE-FX, MM cable
- SC sockets
- Operating Voltage: 12/24 V DC (9.6 - 32 V DC)
- Current consumption at 24 V DC: Max. 83 mA
- Power supply/signaling contact: 1 x plug-in terminal block, 3-pin
- Operating temperature: 0ºC ... 60ºC
- Ingress Protection: IP30
- Dimensions (W x H x D): 26 x 102 x 79 mm (w/o terminal block)
- Mounting: DIN Rail
- Weight: 100 g
