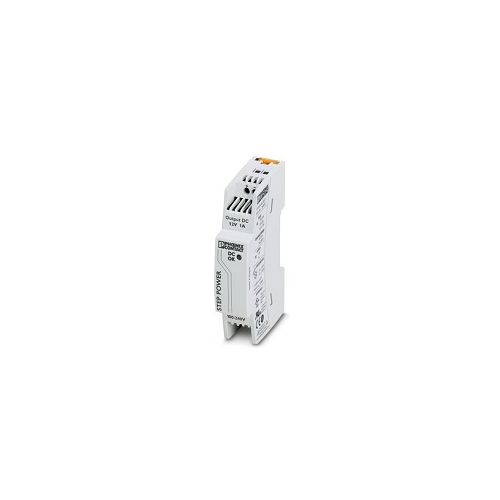

STEP-PS/ 1AC/12DC/1 | 2868538 | Step Power PSU
Primary-switched STEP POWER power supply for DIN rail and direct mounting, input: 1-phase, output: 12 VDC/1A
| Complete Electronics Part No. | 2868538 |
|---|---|
| Manufacturers Part No. | 2868538 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 12 V DC / 1A |
Description
STEP-PS/ 1AC/12DC/1
Step Power PSU For 35mm DIN Rail
Nominal input range: 100 V AC to 240 V AC / 95 V DC to 250 V DC
Input AC Frequency range: 45 Hz ... 65 Hz
Input Fuse: 1.25 A Slow Blow (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Transient surge protection; Varistor
Output range: 12 V DC
Output power: 12 W
Output current: 1 A (-25 °C ... 55 °C)
Operating temperature: -25°C ... 70°C
Connection method: Screw
LED signaling
Width: 18 mm
Height: 90 mm
Depth: 55 mm
Housing material: Polycarbonate / POM (Polyoxymethylene)
Ingress protection: IP20
Weight (excluding packing): 88 g
Part Number: 2868538
Customs tariff number: 85044095
GTIN: 4046356519960
Country of origin: Vietnam
