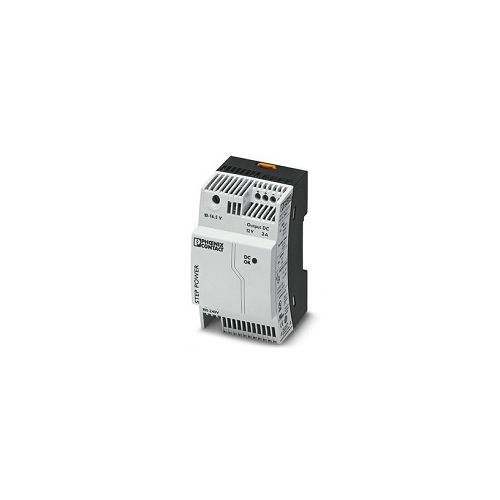

STEP-PS/ 1AC/12DC/3 | 2868570 | Step Power PSU
Primary-switched STEP POWER power supply for DIN rail mounting, input: 1-phase, output: 12 V DC/3 A, for distribution boards
| Complete Electronics Part No. | 2868570 |
|---|---|
| Manufacturers Part No. | 2868570 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 3 A |
Description
STEP-PS/ 1AC/12DC/3
Step Power PSU For 35mm DIN Rail
Nominal input range: 100 V AC to 240 V AC / 95 V DC to 250 V DC
Input AC Frequency range: 45 Hz ... 65 Hz
Input Fuse: 3.15 A Slow Blow (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Transient surge protection; Varistor
Output range: 12 V DC (> 12 V DC, constant capacity restricted)
Output power: 36 W
Output current: 3 A (-25 °C ... 55 °C)
Operating temperature: -25°C ... 70°C
Connection method: Screw
LED signaling
Width: 54 mm
Height: 90 mm
Depth: 55 mm
Housing material: Polycarbonate / POM (Polyoxymethylene)
Ingress protection: IP20
Weight (excluding packing): 190 g
Part Number: 2868570
Customs tariff number: 85044095
GTIN: 4046356309578
Country of origin: Vietnam
