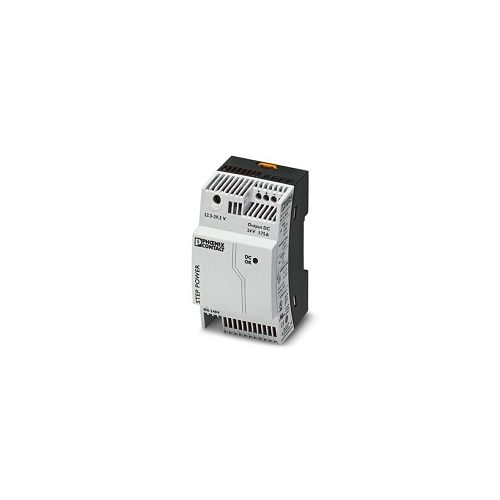

STEP-PS/ 1AC/24DC/1.75 | 2868648 | Step Power PSU
Primary-switched STEP POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/1.75 A, for distribution boards
| Complete Electronics Part No. | 2868648 |
|---|---|
| Manufacturers Part No. | 2868648 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 3.75 A |
Description
STEP-PS/ 1AC/24DC/1.75
Step Power PSU For 35mm DIN Rail
Nominal input range: 100 V ac to 240 V ac / 95 V DC to 250 V DC
Input AC Frequency range: 45 Hz ... 65 Hz
Transient surge protection; Varistor
Input Fuse: 3.15 A Slow Blow (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Output Voltage: 24 Vdc DC (> 24 V DC, constant capacity restricted)
Output power: 42 W
Output current: 1.75A
Operating temperature: -25°C ... 70 °C (> 60°C Derating: 2.5 %/K)
Connection method: Screw
LED signaling
Width: 54 mm
Height: 90 mm
Depth: 55 mm
Housing material: Polycarbonate / Polyoxymethylene
Ingress protection: IP20
Weight (excluding packing): 190 g
Part Number: 2868648
Customs tariff number: 85044095
GTIN: 4046356172844
Country of origin: Vietnam
