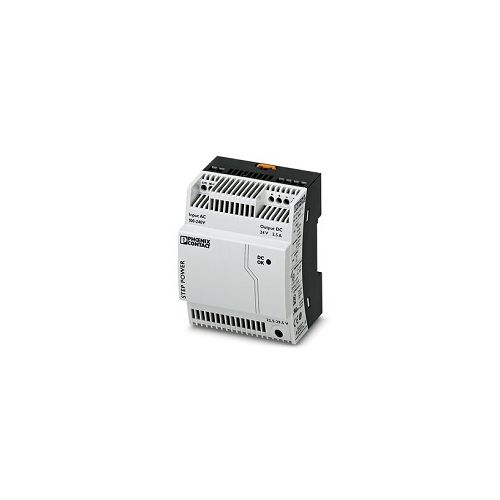

STEP-PS/ 1AC/24DC/2.5 | 2868651 | Step Power PSU
Primary-switched STEP POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/2.5 A, for building automation
| Complete Electronics Part No. | 2868651 |
|---|---|
| Manufacturers Part No. | 2868651 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 2.5 A |
Description
STEP-PS/ 1AC/24DC/2.5
Step Power PSU For 35mm DIN Rail
Nominal input range: 100 V AC to 240 V AC / 95 V DC to 250 V DC
Input AC Frequency range: 45 Hz ... 65 Hz
Input Fuse: 3.15 A Slow Blow (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Short Circuit Protection
No Load Proof
Output range: 24 Vdc DC (22.5 V DC to 29.5 V DC)
Output power: 60 W
Output current: 2.5 A
Operating temperature: -25°C ... 70°C (> 55°C Derating: 2.5%/K)
Connection method: Screw
LED signaling
Width: 72 mm
Height: 90 mm
Depth: 55 mm
Housing material: Polycarbonate / POM (Polyoxymethylene)
Ingress protection: IP20
Weight (excluding packing): 277 g
Part Number: 2868651
Customs tariff number: 85044095
GTIN: 4046356163224
Country of origin: Vietnam
