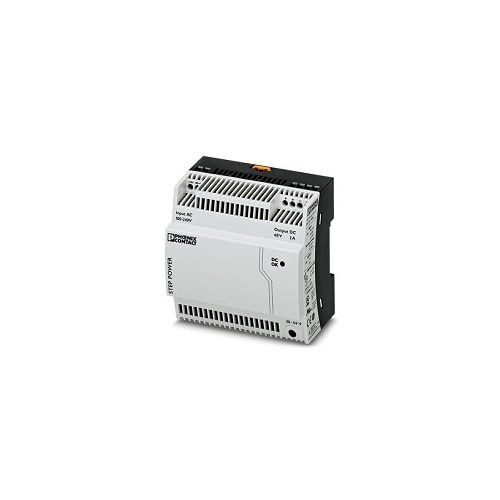

STEP-PS/ 1AC/48DC/2 | 2868680 | Step Power PSU
Primary-switched power supply, STEP POWER, input: 1- phase, output: 48 V DC / 2 A, adjustable from 30 V DC ... 56 V DC, PoE application up to 96 W
| Complete Electronics Part No. | 2868680 |
|---|---|
| Manufacturers Part No. | 2868680 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 48 V DC / 2 A |
Description
STEP-PS/ 1AC/48DC/2
Step Power PSU For 35mm DIN Rail
Nominal input range: 100 V AC to 240 V AC / 95 V DC to 250 V DC
Input AC Frequency range: 45 Hz ... 65 Hz
Input Fuse: 4 A Slow Blow (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Output Voltage: 48 V DC (Adjustable 30 V DC to 56 V DC)
Output power: 96 W
Output current: 2 A
Operating temperature: -25°C ... 70°C
Connection method: Screw
LED signaling
Width: 90 mm
Height: 90 mm
Depth: 55 mm
Housing material: Polycarbonate / Polyamid
Ingress protection: IP20
Weight (excluding packing): 327 g
Part Number: 2868680
Customs tariff number: 85044095
GTIN: 4046356309585
Country of origin: Poland
