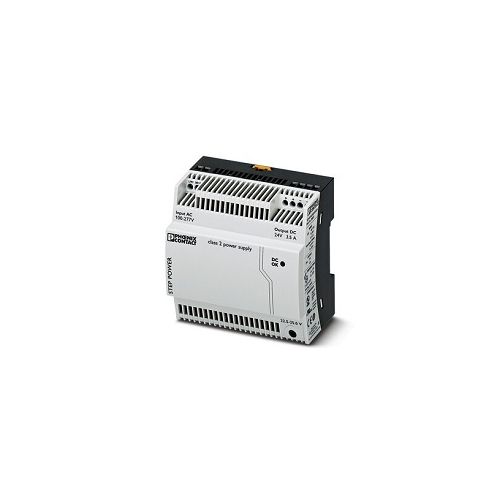

STEP-PS/277AC/24DC/3.5 | 2904945 | Step Power PSU
Primary-switched power supply unit, STEP POWER, Screw connection, DIN rail or direct mounting, input: 1-phase, output: 24 V DC / 3.5 A
| Complete Electronics Part No. | 2904945 |
|---|---|
| Manufacturers Part No. | 2904945 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 3.75 A |
Description
STEP-PS/277AC/24DC/3.5
Step Power PSU For 35mm DIN Rail
Nominal input range: 100 V AC to 240 V AC / 95 V DC to 250 V DC
Input AC Frequency range: 45 Hz ... 65 Hz
Input Fuse: 4 A Slow Blow (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Output Voltage: 24 V DC
Output power: 84 W
Output current: 3.5 A
Operating temperature: -25°C ... 70°C
Connection method: Screw
LED signaling
Width: 90 mm
Height: 90 mm
Depth: 61 mm
Housing material: Polycarbonate / POM (Polyoxymethylene)
Ingress protection: IP20
Weight (excluding packing): 379 g
Part Number: 2904945
Customs tariff number: 85044095
GTIN: 4046356903875
Country of origin: Germany
