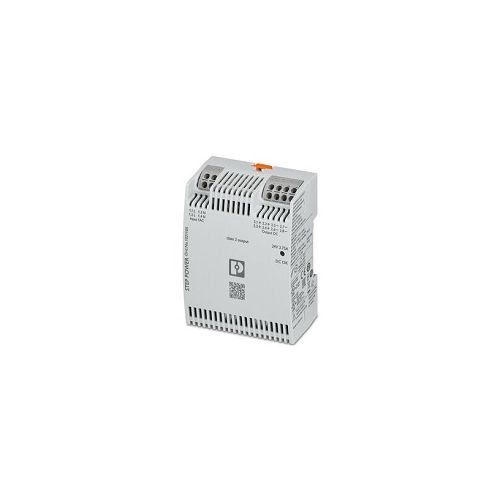

STEP3-PS/1AC/24DC/3.75/PT/CO | 1321105 | Step Power PSU
Primary-switched power supply unit, STEP POWER, Push-in connection, DIN rail or direct mount, with protective coating, input: 1-phase, output: 24 V DC / 3.75 A
| Complete Electronics Part No. | 1321105 |
|---|---|
| Manufacturers Part No. | 1321105 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 3.75 A |
Description
STEP3-PS/1AC/24DC/3.75/PT/CO
Step Power PSU For 35mm DIN Rail
Nominal input range: 100 V AC to 240 V AC / 110 V DC to 250 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Transient surge protection; Varistor
Input Fuse: 4 A Slow Blow (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Short Circuit Protection
No Load Proof
Output range: 24 Vdc DC (> 24 V DC, constant capacity restricted)
Output power: 90 W
Output current: 3.75A
Operating temperature: -10°C ... 70°C (> 50°C Derating: 2 %/K)
Connection method: Push In
LED signaling
Width: 72 mm
Height: 90 mm
Depth: 43 mm
Housing material: Polycarbonate / Polyamid
Ingress protection: IP20
Weight (excluding packing): 230 g
Part Number: 1321105
Customs tariff number: 85044095
GTIN: 4063151606923
Country of origin: Vietnam
