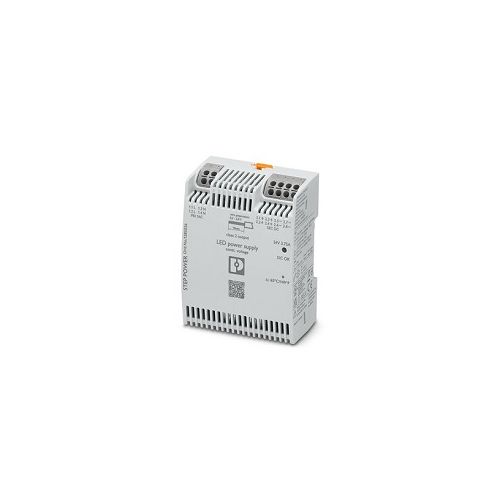

STEP3-PS/1AC/24DC/3.75/PT/LED | 1285036 | Step Power PSU
Primary-switched LED power supply, STEP POWER, Push-in connection, DIN rail or direct mounting, input: 1-phase, output: 24 V DC / 3.75 A
| Complete Electronics Part No. | 1285036 |
|---|---|
| Manufacturers Part No. | 1285036 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 3.75 A |
Description
STEP3-PS/1AC/24DC/3.75/PT/LED
Step Power PSU For 35mm DIN Rail
Nominal input range: 100 V AC to 240 V AC / 110 V DC to 250 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Input Fuse: 4 A Slow Blow (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Output Voltage: 24 V DC
Output power: 90 W
Output current: 3.75 A
Operating temperature: -25°C ... 70°C
Connection method: Push In
LED signaling
Width: 72 mm
Height: 90 mm
Depth: 43 mm
Housing material: Polycarbonate / Polyamid
Ingress protection: IP20
Weight (excluding packing): 207 g
Part Number: 1285036
Customs tariff number: 85044095
GTIN: 4063151489793
Country of origin: Vietnam
