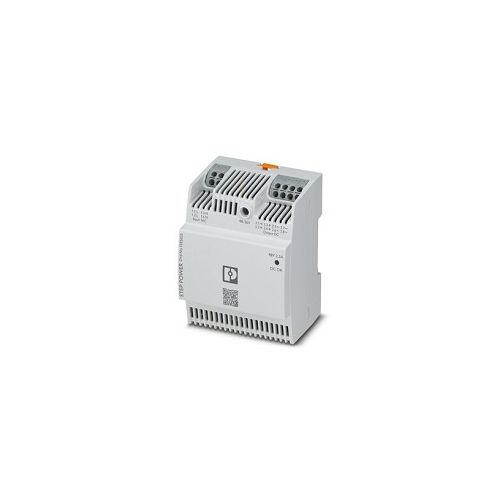

STEP3-PS/1AC/48DC/2.5/PT | 1285035 | Step Power PSU
Primary-switched power supply unit, STEP POWER input: 1-phase, output: 48 V DC / 2.5 A, Adjustable from 48 V DC ... 56 V DC, PoE application up to 120 W
| Complete Electronics Part No. | 1285035 |
|---|---|
| Manufacturers Part No. | 1285035 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 48 V DC / 2.5A |
Description
STEP3-PS/1AC/48DC/2.5/PT
Step Power PSU For 35mm DIN Rail
Input Data
Nominal input range: 120 V AC to 240 V AC / 125 V DC to 250 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Input Fuse: 4 A Slow Blow (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Output Data
Output Voltage: 48 V DC (Adjustable 48 V DC to 56 V DC)
Output power: 120 W
Output current: 2.5 A
Operating temperature: -25°C ... 70°C
Connection method: Push In
LED signaling
Dimensions
Width: 72 mm
Height: 90 mm
Depth: 61 mm
Housing material: Polycarbonate / Polyamid
Ingress protection: IP20
Commercial data
Weight (excluding packing): 255 g
Part Number: 1285035
Customs tariff number: 85044095
GTIN: 4063151490744
Country of origin: Vietnam
