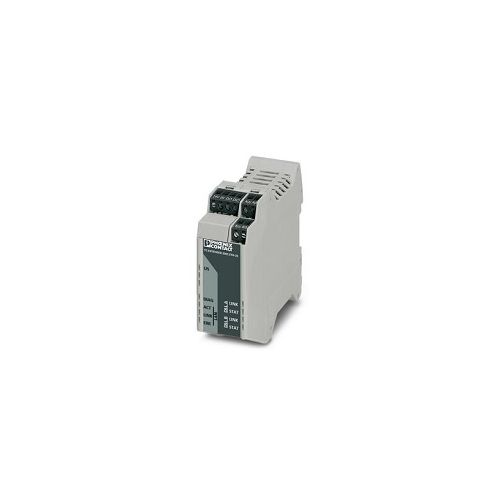

TC EXTENDER 2001 ETH-2S | 2702409

Second generation: Unmanaged Ethernet extender for point-to-point connections, line and ring structures, data rates up to 30 Mbps
More Information
Complete Electronics Part No. 2702409
Manufacturers Part No. 2702409
Description

TC EXTENDER 2001 ETH-2S

  • Ethernet extender in accordance with ITU-T G.991.2
  • Nominal Supply Voltage: 24 V DC ±5 %
  • Supply Voltage Range: 18 V DC ... 30 V DC
  • Typical Current consumption: < 180 mA (24 V DC)
  • COMBICON plug-in screw terminal block
  • Status and diagnostic indicators
  • 2 Digital Ouputs
  • Current Output Signal: ≤ 150 mA (Short-circuit-proof)
  • Serial Transmission Speed: 4-wire operation: 64 kbps ... 30 Mbps / 2-wire operation: 32 kbps ... 15.3 Mbps
  • Diagnostics via USB and LEDs,
  • 1 LAN port
  • Width: 35mm
  • Height: 99mm
  • Depth: 114.5mm
  • Housing material: PA 6.6-FR
  • Colour: Grey
  • DIN Rail Mounting
  • Ingress protection: IP20
  • Part Number: 2702409
  • Operating Temperature: -20 °C ... 60 °C (Freestanding (40 mm spacing to the right and left)
