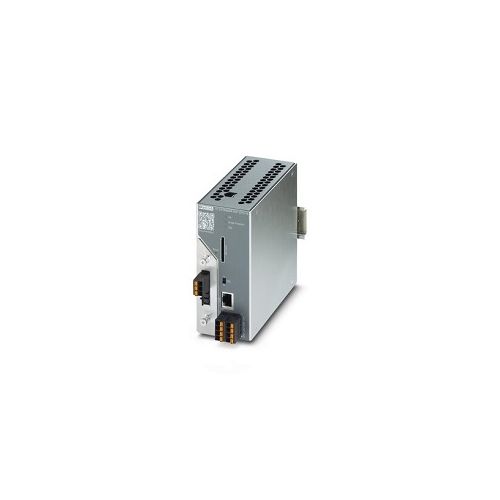

TC EXTENDER 4001 ETH-1S | 2702253
Managed Ethernet extender, point-to-point connections, data rates up to 15.3 Mbps, distances of up to 20 km on in-house copper cables ***No longer in product range***
| Complete Electronics Part No. | 2702253 |
|---|---|
| Manufacturers Part No. | 2702253 |
Description
TC EXTENDER 4001 ETH-1S
***No longer in product range***
- Up to 15.3 Mbps in 2-wire operation
- Automatic topology and data rate detection
- Network transparent (no IP configuration required)
- Remote diagnostics via IP
- Automatic event messages via SNMP
- Replaceable surge protection
- Diagnostics via Ethernet
- 1 SHDSL port, 1 LAN port
- Housing: Aluminum / steel sheet DC01
- Operating Temperature: -25 °C ... 60 °C
- Nominal Supply Voltage: 24 V DC ±5 %
- Supply Voltage Range: 10 V DC ... 60 V DC
- Typical Current consumption: 180 mA (24 V DC)
- Push in spring connection
- Width: 60mm
- Height: 130mm
- Depth: 160mm
- DIN Rail Mounting
- Weight per Piece (excluding packing) 258.7 g
- Ingress protection: IP20
- Part Number: 2702253
- Customs tariff number: 85176200
- Country of Origin: DE
