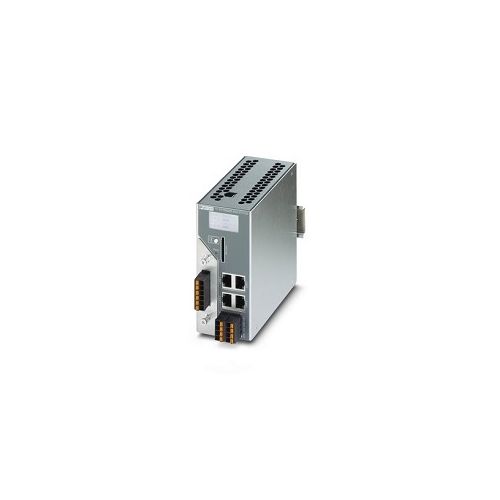

TC EXTENDER 6004 ETH-2S | 2702255
Managed Ethernet extender, point-to-point, line and ring structures, data rates up to 30 Mbps, distances of up to 20 km on in-house copper cables
| Complete Electronics Part No. | 2702255 |
|---|---|
| Manufacturers Part No. | 2702255 |
Description
TC EXTENDER 6004 ETH-2S
- Data rates up to 30 Mbps - 4 wire operation
- 2 digital outputs for alerting external controllers
- 2 SHDSL ports, 4-port switch
- Automatic topology and data rate detection
- Network transparent (no IP configuration required)
- Remote diagnostics via display and Ethernet
- Automatic event messages via SNMP
- Replaceable surge protection
- Diagnostics via Ethernet
- 2 SHDSL ports, 4 port switch
- Housing: Aluminum / steel sheet DC01
- Operating Temperature: -25 °C ... 60 °C
- Nominal Supply Voltage: 24 V DC ±5 %
- Supply Voltage Range: 10 V DC ... 60 V DC
- Typical Current consumption: 200 mA (24 V DC)
- Push in spring connection
- Width: 60mm
- Height: 130mm
- Depth: 160mm
- DIN Rail Mounting
- Weight per Piece (excluding packing) 766 g
- Ingress protection: IP20
- Part Number: 2702255
- Customs tariff number: 85176200
- Country of Origin: DE
