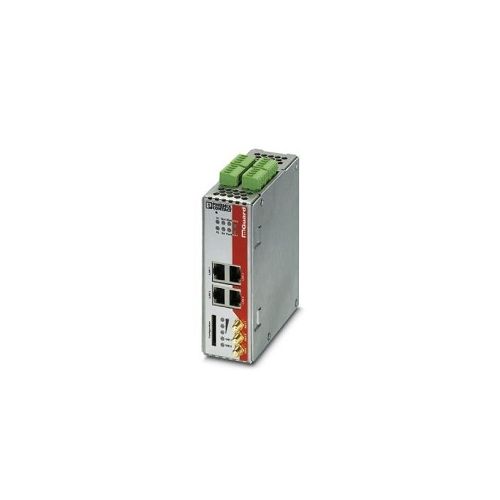

TC MGUARD RS2000 4G VPN | 2903588 | Router
Security appliance with 4G cellular interface, SD card slot, 2 VPN tunnels, firewall, 4-port switch, 2 SIM card slots, GPS receiver
| Complete Electronics Part No. | 2903588 |
|---|---|
| Manufacturers Part No. | 2903588 |
| Ethernet Product Type: | Firewall / Router |
| Total 10/100 (RJ45) Ports: | 4 |
| IP Rating: | IP20 |
Description
Security router for DIN rail
Remote Maintenance Router
Security router for DIN rail
- 4 x 10/100 Mbps Ethernet ports (RJ45)
- RS232 Interface (D-SUB 9 plug)
- 2-click firewall and VPN for 2 tunnels (fixed)
- Antenna: 50 Ω impedance SMA antenna socket
- 3 Digital Inputs (DI)
- 3 Digital Outputs (DO)
- High-speed cellular interface with provider redundancy
- Integrated 4-port switch
- Maximum security with IPsec protocol on Layer 3
- Web-based management, SNMP
- Replaceable configuration memory
- RS-232 interface with COM server function for integrating serial devices
- Flexible routing • 2 parallel VPN tunnels
- Supports current certificates such as x509.v3
- Stateful inspection firewall • Extended temperature rating
- LED bar graph to display receive quality
- Signal contact connection method: Plug-in/screw connection via COMBICON
- Supply Voltage: 24 V DC
- Supply Voltage Range: 11 V DC...36 V DC (via pluggable COMBICON screw terminal block)
- Typical Current Consumption: 320 mA (at US = 24 V DC)
- Degree of protection: IP20
- Operating Temperature: -40°C ... 60°C
- Width: 45mm
- Height: 130mm
- Depth: 114mm
- Mounting Type: DIN Rail
- Housing material: Metal
- Colour: Silver
- Weight per Piece (excluding packing): 610 g
- Part Number 2903588
- Customs tariff number: 85176200
- Country of origin: DE
