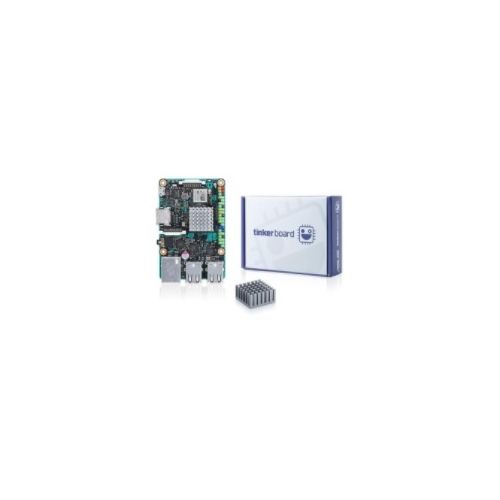

TKB-S16EMMC-2GB | Tinker Board S - with 16GB eMMc

Tinker Board S supports next-generation graphics and GPU computing API's. Powered by an ARM-based Mali™
More Information
Complete Electronics Part No TKBS16EMMC2GB
Manufacturers Part No. TKB-S16EMMC-2GB
Description

Tinker Board S - with 16GB eMMc

  • Powered by an ARM-based Mali™-T760 MP4 GPU
  • Tinker Board S has HDMI CEC hardware circuit implemented,
  • HD and UHD video playback at 30 fps
  • Including a 40-pin GPIO interface and enhanced I2S interface
  • Tinker Board S also features Gbit LAN for Internet and network connectivity.
  • Onboard 16GB eMMC storage to enhance performance and stability, plus a microSD slot.
  • Low-voltage input detection. Avoid power issue and ensure system stability if using a non-qualified* power supply
  • Onboard power-on pin for makers giving more freedom when bringing their ideas to life.
  • Enhanced I2S pin with Slave mode and an improved software API for better compatibility
  • HDMI-CEC-ready
  • Audio jack plug-in detection and auto-switch to 3.5mm audio jack from other interfaces
