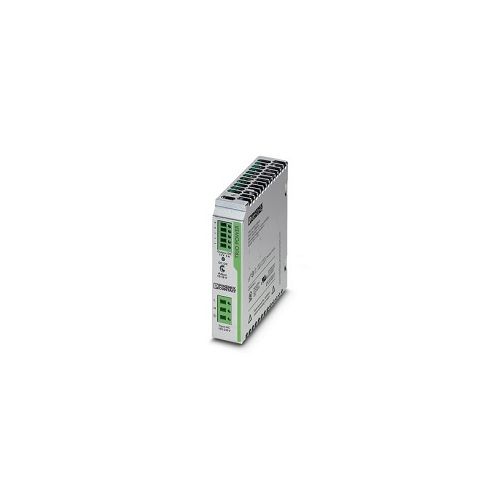

TRIO-PS/1AC/12DC/ 5 | 2866475 | DIN rail PSU
Primary-switched TRIO POWER power supply for DIN rail mounting, input: 1-phase, output: 12 V DC/5 A, Rugged design with metal housing
| Complete Electronics Part No. | 2866475 |
|---|---|
| Manufacturers Part No. | 2866475 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 12 V DC / 5A |
Description
DIN rail power supply
Trio Power For 35mm DIN Rail
Nominal input range: 100 V ac to 240 V ac
Input AC Frequency range: 50 Hz ... 60 Hz
Transient surge protection; Varistor
Input Fuse B6, B10, B16
Recommended breaker for input protection: 6 A ... 16 A (Characteristics B, C, D, K)
Output range: 12 Vdc, (> 12 V DC, constant capacity restricted)
Output power: 60 W
Output current: 5A
Operating temperature: -25°C ... 70 °C (> 60°C Derating: 2.5 %/K)
Overvoltage protection
Short circuit protection
Connection method: Screw
LED signaling
Width: 32 mm
Height: 130 mm
Depth: 115 mm
Housing material: Aluminum
Ingress protection: IP20
Weight (excluding packing): 500 g
Part Number: 2866475
Customs tariff number: 85044095
GTIN: 4046356153751
Country of origin: China
