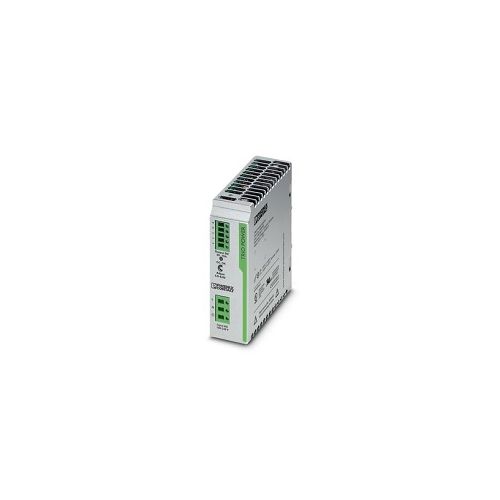

TRIO-PS/1AC/5DC/10 | 2902646 | DIN rail PSU
Primary-switched TRIO POWER power supply for DIN rail mounting, input: 1-phase, output: 5 V DC/10 A, screw connection
| Complete Electronics Part No. | 2902646 |
|---|---|
| Manufacturers Part No. | 2902646 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 5 V DC / 10A |
Description
DIN rail power supply
Trio Power For 35mm DIN Rail
Nominal input range: 100 V ac to 240 V ac
Input AC Frequency range: 50 Hz ... 60 Hz
Transient surge protection; Varistor
Input Fuse B6, B10, B16
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Output range: 5 Vdc, (> 12 V DC, constant capacity restricted)
Output power: 50 W
Output current: 10A
Operating temperature: -25°C ... 70 °C (> 60°C Derating: 2.5 %/K)
Overvoltage protection
Short circuit protection
Connection method: Screw
LED signaling
Width: 40 mm
Height: 130 mm
Depth: 115 mm
Housing material: Aluminium
Ingress protection: IP20
Weight (excluding packing): 600 g
Part Number: 2902646
Customs tariff number: 85044095
GTIN: 4046356669672
Country of origin: China
