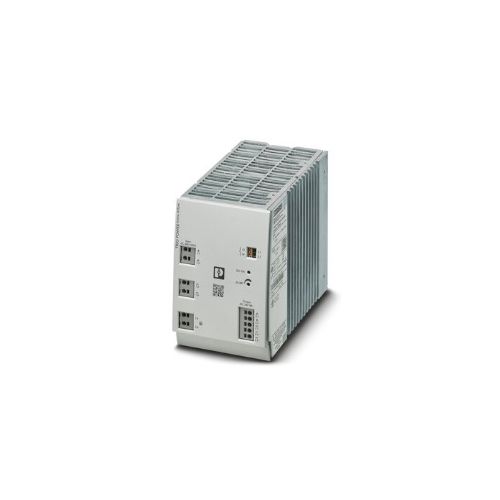

TRIO-PS-2G/1500DC/24DC/8 | 1075240 | DC/DC Converter
TRIO POWER DC/DC converter, Nominal input range 600 V DC ... 1500 V DC Nominal output voltage 24 V DC ±1 %, LED indicator, UL approved, IECEE CB Scheme
| Complete Electronics Part No. | 1075240 |
|---|---|
| Manufacturers Part No. | 1075240 |
| Nominal Input Voltage: | 600 to 1500 V DC |
| Nominal Output Voltage: | 24 V DC / 8 A |
| Output Setting Range: | 24 V DC to 28 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched TRIO POWER DC/DC converter
- Nominal input voltage range: 600 V DC ... 1500 V DC
- Current Consumption: typ. 0.35 A (600 V DC), typ. 0.145 A (1500 V DC)
- Recommended Breaker: 2 A (gPV)
- Input Fuse: 1500 V DC
- Input Connection method: Push in Connection
- Nominal Output Voltage: 24 V DC ±1 %
- Setting range of the output voltage 24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted)
- Nominal Output current: 8 A
- Connection in parallel: YES
- Connection in series: NO
- Output Connection method: Push in Connection
- LED signaling
- Housing Material: Metal, Aluminum (AlMg3)
- Operating temperature: -25°C ... 70°C (> 60°C Derating: 1.2 %/K)
- Width: 88.5 mm
- Height: 130 mm
- Depth: 160 mm
- Ingress protection: IP20
- Weight (excluding packing): 4900g
- Customs tariff number: 85044030
- GTIN: 4055626779492
- UL Approved
- Country of origin: China
