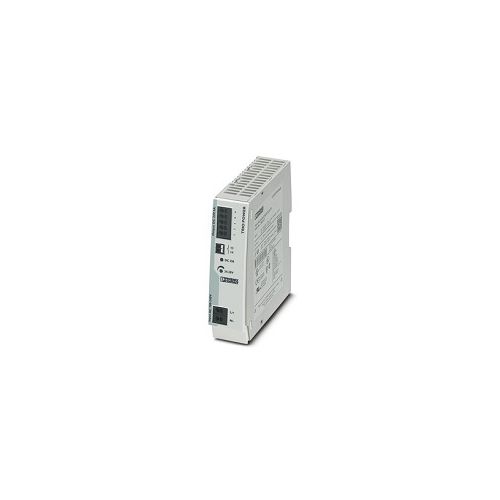

TRIO-PS-2G/1AC/24DC/5/B+D | 2903144 | DIN rail PSU
Primary-switched power supply unit, TRIO POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 5 A
| Complete Electronics Part No. | 2903144 |
|---|---|
| Manufacturers Part No. | 2903144 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 5 A |
Description
DIN rail power supply
Trio Power For 35mm DIN Rail
Nominal input range: 100 V ac to 240 V ac / 110 V DC ... 250 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Transient surge protection; Varistor
Input Fuse: 6.3 A (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Output range: 24 Vdc....28 V DC (> 24 V DC, constant capacity restricted)
Output power: 240 W
Output current: 10A
Operating temperature: -25°C ... 70 °C (> 60°C Derating: 2.5 %/K)
Overvoltage protection
Short circuit protection
Connection method: Push in
LED signaling
Width: 35 mm
Height: 135 mm
Depth: 115 mm
Housing material: Polycarbonate
Ingress protection: IP20
Weight (excluding packing): 470 g
Part Number: 2903144
Customs tariff number: 85044095
GTIN: 4046356726955
Country of origin: China
